AWR1243主要特性功能_PCB设计图

电子工程师 2018-04-11 7536

汽车电子

2372人已加入

描述

TI公司的AWR1243是单片77GHz和79GHz频率调制连续波(FMCW)收发器,具有基于分数N PLL的超精密啁啾引擎,简化了汽车雷达传感器在76-81GHz的实现方案.采用低功耗45nm RFCMOS工艺,单片实现了内置PLL和A2D转换器的3TX,4RX系统.TX发送功率12dBm,RX噪音15dB (76-77GHz), 16dB(77-81GHz),1MHz时的相位噪音–94 dBc/Hz (76-77 GHz),–91 dBc/Hz (77 - 81 GHz),内置了校准和自测试等功能.主要用在自动高速公路驾驶,自动紧急刹车和自适应巡航控制.本文介绍了AWR1243主要特性,功能框图,短中远距离雷达框图,参考威廉希尔官方网站 ,以及AWR1443 BoosterPack™评估板主要特性,框图,威廉希尔官方网站图,材料清单和PCB设计图.

The AWR1243 device is an integrated single-chip FMCW transceiver capable of operation in the 76- to 81-GHz band. The device enables unprecedented levels of integration in an extremely small form factor. AWR1243 is an ideal solution for low power, self-monitored, ultra-accurate radar systems in the automotive space.

The AWR1243 device is a self-contained FMCW transceiver single-chip solution that simplifies the implementation of Automotive Radar sensors in the band of 76 to 81 GHz. It is built on TI’s low-power 45-nm RFCMOS process, which enables a monolithic implementation of a 3TX, 4RX system with built-in PLL and A2D converters. Simple programming model changes can enable a wide variety of sensor implementation (Short, Mid, Long) with the possibility of dynamic reconfiguration for implementing a multimode sensor. Additionally, the device is provided as a complete platform solution including reference hardware design, software drivers, sample configurations, API guide, and user documentation.

AWR1243主要特性:

FMCW Transceiver

Integrated PLL, Transmitter, Receiver, Baseband, and A2D

76- to 81-GHz Coverage With 4 GHz Available Bandwidth

Four Receive Channels

Three Transmit Channels (Two Can be Used Simultaneously)

Ultra-Accurate Chirp Engine Based on Fractional-N PLL

TX Power: 12 dBm

RX Noise Figure:

15 dB (76 to 77 GHz)

16 dB (77 to 81 GHz)

Phase Noise at 1 MHz:

–94 dBc/Hz (76 to 77 GHz)

–91 dBc/Hz (77 to 81 GHz)

Built-in Calibration and Self-Test

Built-in Firmware (ROM)

Self-calibrating System Across Frequency and Temperature

Host Interface

Control Interface With External Processor Over SPI

Data Interface With External Processor Over MIPI D-PHY and CSI2 V1.1

Interrupts for Fault Reporting

ASIL B Capable

AECQ100 Qualified

AWR1243 Advanced Features

Embedded Self-monitoring With No Host Processor Involvement

Complex Baseband Architecture

Option of Cascading Multiple Devices to Increase Channel Count

Embedded Interference Detection Capability

Power Management

Built-in LDO Network for Enhanced PSRR

I/Os Support Dual Voltage 3.3 V/1.8 V

Clock Source

40.0-MHz Crystal With Internal Oscillator

Supports External Oscillator at 40 and 50 MHz

Easy Hardware Design

0.65-mm Pitch, 161-Pin 10.4 mm × 10.4 mm Flip Chip BGA Package for Easy Assembly and Low-Cost PCB Design

Small Solution Size

Supports Automotive Temperature Operating Range

AWR1243应用:

• Automated Highway Driving

• Automatic Emergency Braking

• Adaptive Cruise Control

传感器

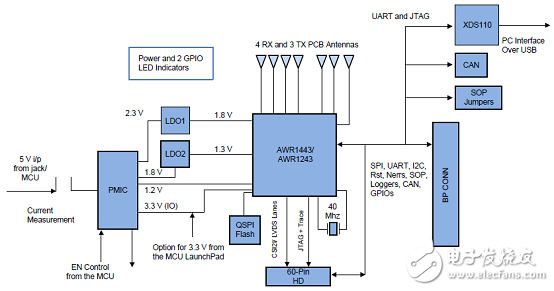

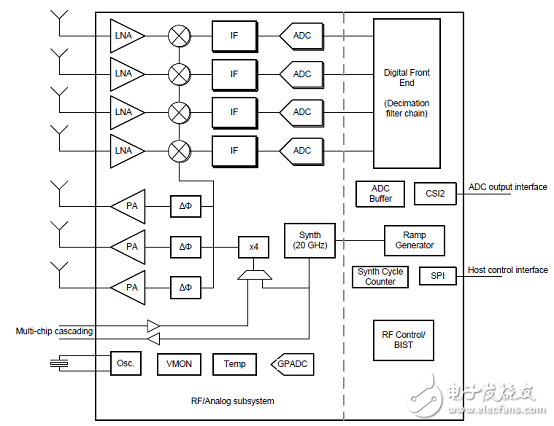

图1.AWR1243功能框图

传感器

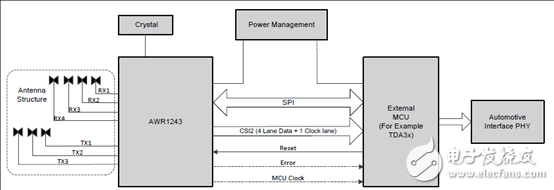

图2.AWR1243短中远距离雷达框图

传感器

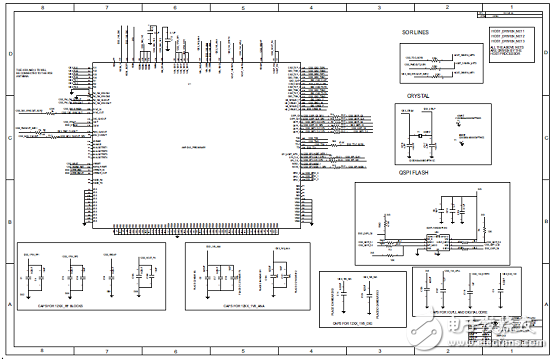

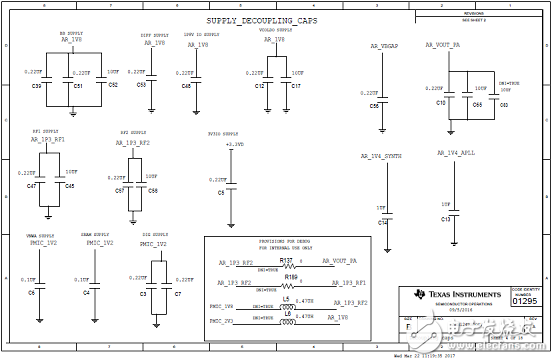

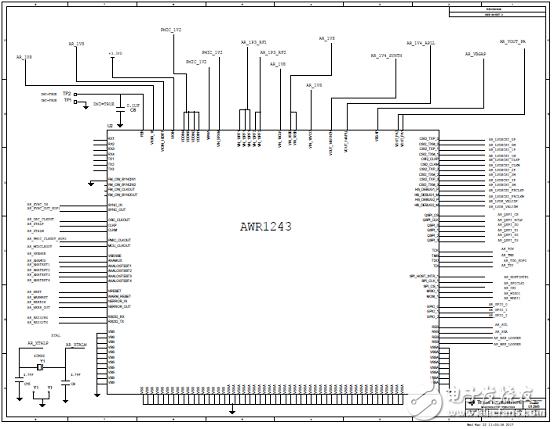

图3.AWR1243参考威廉希尔官方网站图

传感器

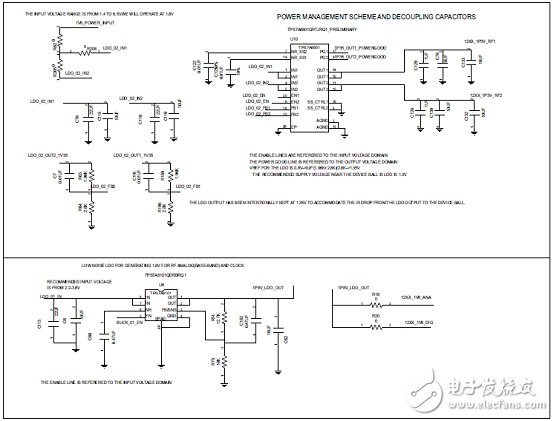

图4.AWR1243低噪音LDO威廉希尔官方网站图

传感器

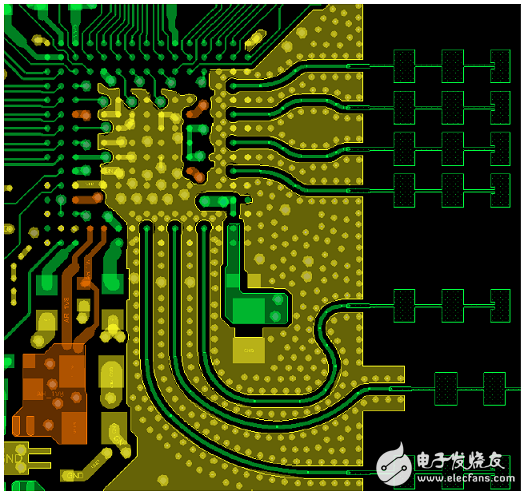

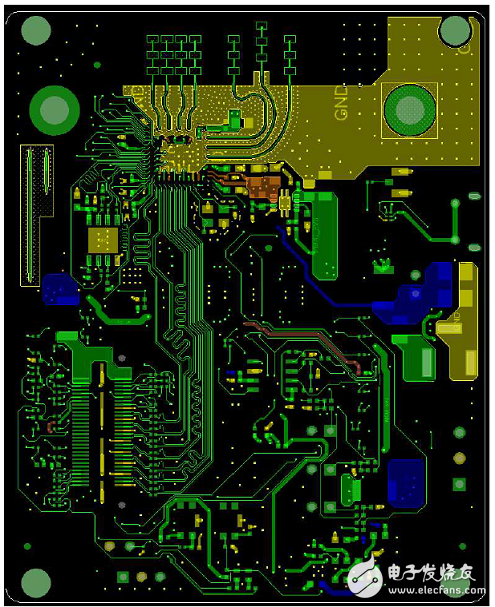

图5.AWR1243参考威廉希尔官方网站 PCB布局图(顶层)

传感器

图6.AWR1243参考威廉希尔官方网站 PCB布局图(顶层放大图)

传感器

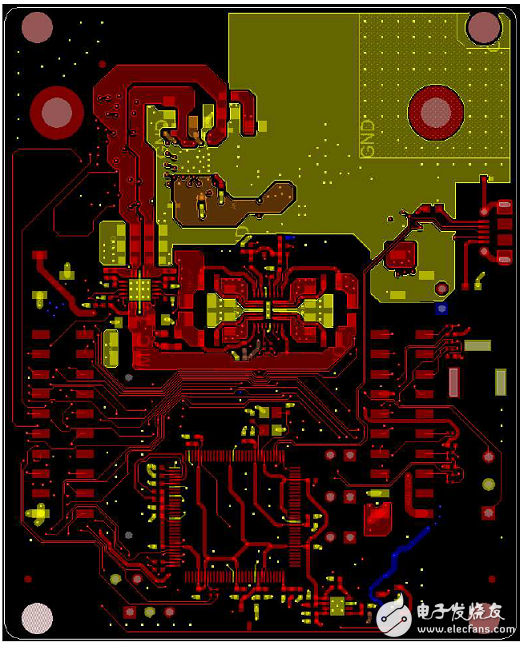

图7.AWR1243参考威廉希尔官方网站 PCB布局图(底层)

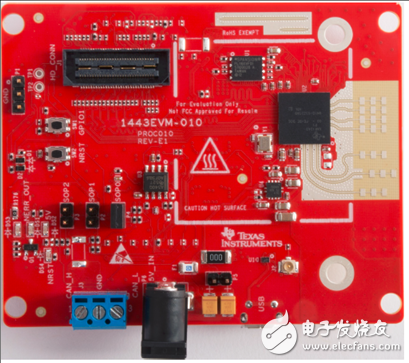

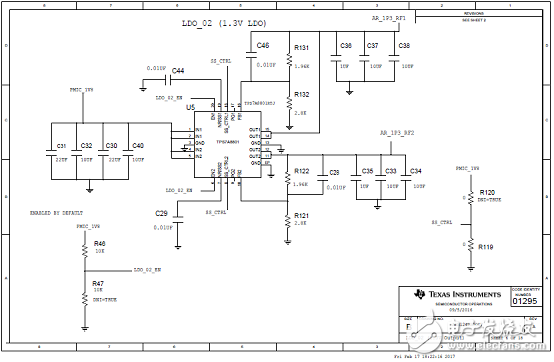

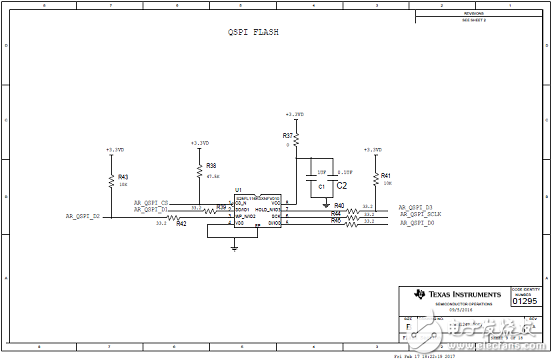

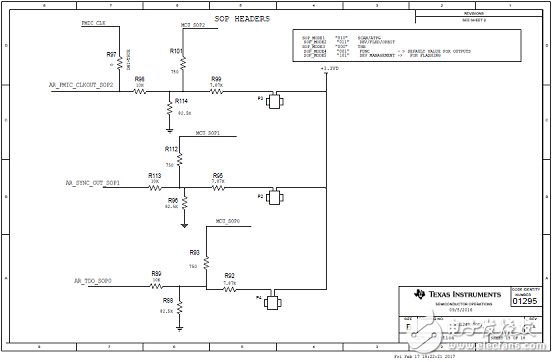

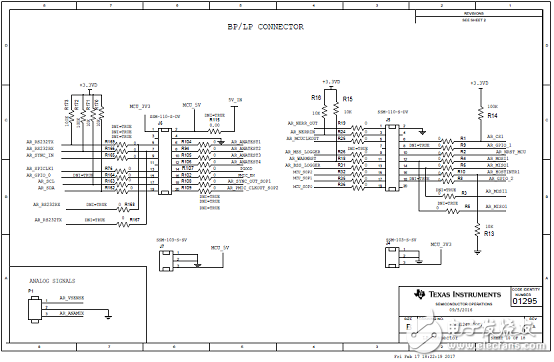

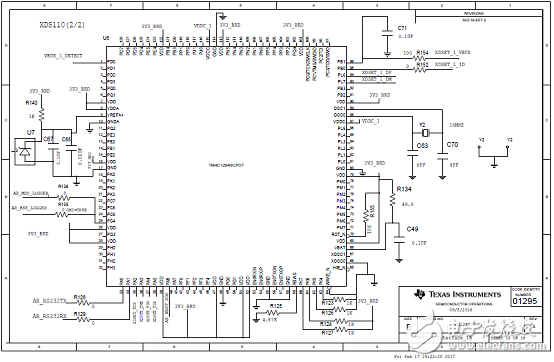

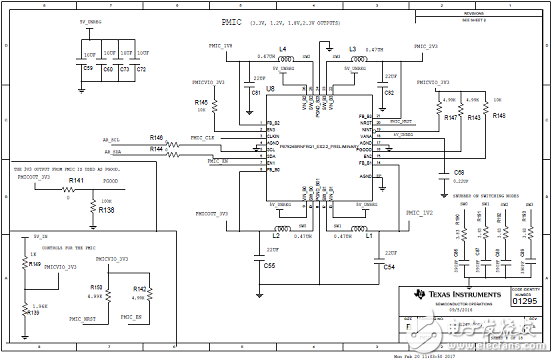

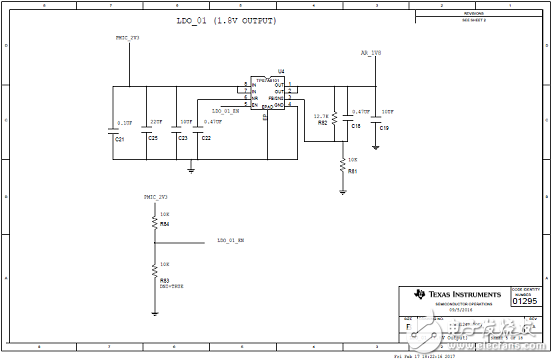

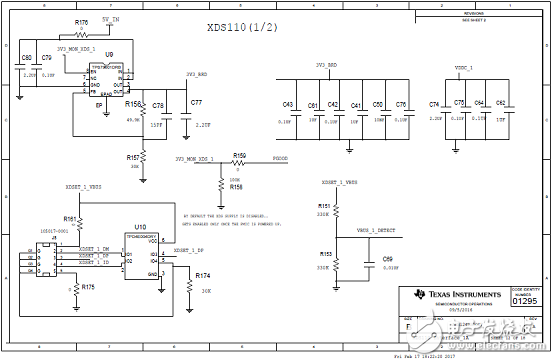

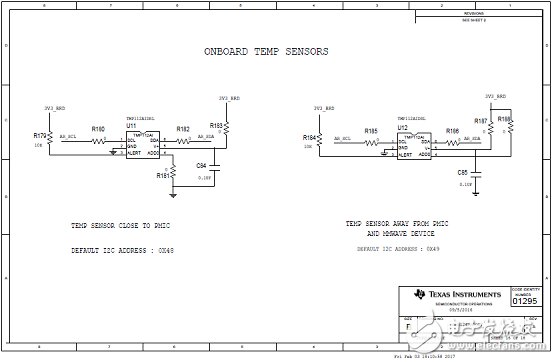

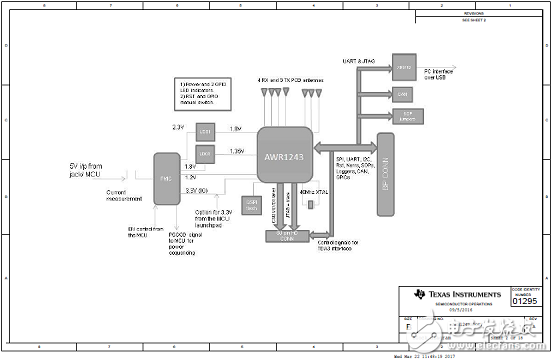

AWR1443 BoosterPack™评估板

The AWR1443 BoosterPack™ is an easy-to-use evaluation board for the single-chip AWR1443 mmWavesensing device from TI, with direct connectivity to the TI MCU LaunchPad™ ecosystem. The evaluationboard contains everything needed to start developing on a low-power ARM®-R4F controller. Theevaluation board includes onboard emulation for programming and debugging, onboard buttons, andLEDs, for quick integration of a simple user interface. The standard 20-pin BoosterPack headers make the evaluation board compatible with a wide variety of TI MCU LaunchPads and enables easy prototyping.

The AWR1243 BoosterPack is an evaluation board for the AWR1243 mmWave high-performance frontend. The evaluation platform enables raw capture of ADC data from the front end and evaluation of RFperformance.

AWR1443 BoosterPack™评估板主要特性:

• 40-pin LaunchPad standard that leverages the LaunchPad ecosystem

• XDS110-based JTAG emulation with serial port, for onboard QSPI flash programming (for AWR1443)

• Backchannel UART through USB to PC, for logging purposes

• Onboard antenna

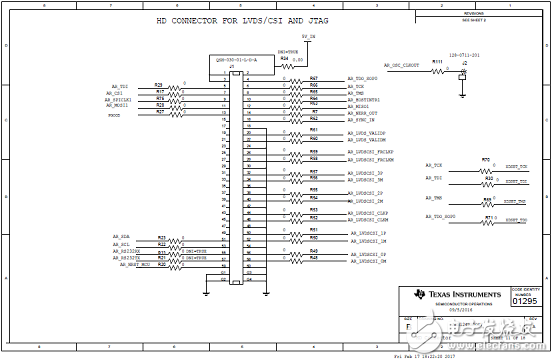

• 60-pin high density (HD) connector, for raw ADC data over CSI, or the high-speed debug interface

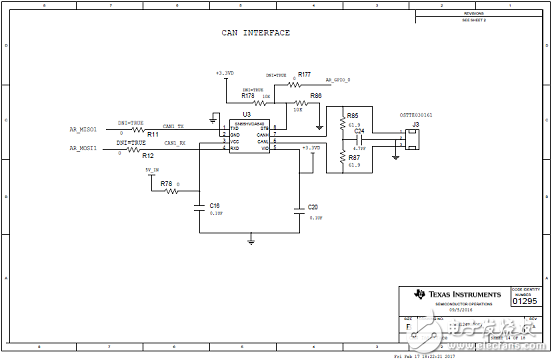

• Onboard CAN transceiver (for AWR1443)

• One button and two LEDs, for user interaction

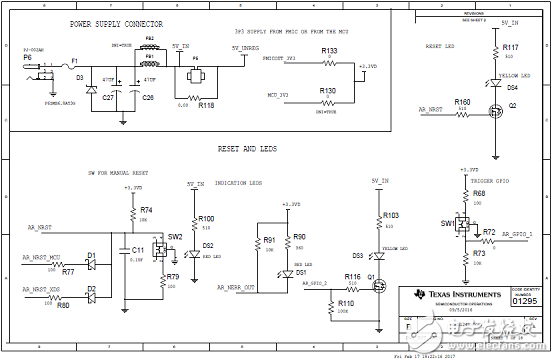

• 5-V power jack, to power the board

AWR1443 BoosterPack™评估板包括:

• AWR1443BOOST or AWR1243BOOST

• Mounting brackets, screws, and nuts, to allow placing the PCB vertical
