FL7734用于低功率相切可调光LED照明解决方案

电子说

1.3w人已加入

描述

  On Semi公司的FL7734是具有高级初级端调节 (PSR) 技术的高度集成 PWM 控制器,用于低功率相切可调光LED照明解决方案,可以自动检测是否有调光,能实现优秀的调光兼容而不会出现闪烁,具有开路LED保护, 短路LED保护, 检测电阻短路保护,逐周期限流和过温保护(带自动重启)。主要用在相位切割调光LED照明。本文介绍了FL7734主要特性,以及评估板FEBFL7734-L55H008A-GEVB主要特性,威廉希尔官方网站 图和材料清单。

  The FL7734 is a highly integrated PWM controller with advanced Primary-Side-Regulation (PSR) technique to minimize components for low power LED lighting solutions. Using the innovative TRUECURRENT technology for tight constant-current control, it enables designs with constant-current (CC) tolerance of less than ±1% in the wide line voltage range to meet stringent LED brightness requirements.

  FL7734 can operate with all types of phase cut dimmers. Phase cut dimming is managed smoothly by bleeding current control to achieve excellent dimmer compatibility without flicker.

  The controller can automatically detect whether there is a dimmer connection. In non dimming mode, the operating mode is set to optimize power factor and THD by enabling linear frequency control and voltage mode based on DCM.

  An external high-voltage bleeding circuit is utilized to implement fast startup and high system efficiency. The FL7734 also provides powerful protections, such as LED open / short, sensing resistor shorted, and over-temperature for high system reliability. The FL7734 is available in 16-pin Small-Outline Package (SOP)。

  FL7734主要特性:

  Excellent Dimmer Compatibility by Active Dimming Control

  Programmable Dimming Curve and Input Current Management

  Constant LED Current Regulation in Large Phase Angle Range

  Cost-Effective Solution without Input Bulk Capacitor and Feedback Circuitry

  Accurate Constant-Current (CC) Control, Independent on Line Voltage, Output Voltage, Magnetizing Inductance Variation

  Power Factor Correction (PFC)

  Fast Startup utilizing Bleeding Circuit

  Open-LED Protection

  Short-LED Protection

  Sensing Resistor Short Protection

  Cycle-by-Cycle Current Limiting

  Over-Temperature Protection with Auto Restart

  FL7734应用:

  Lighting

  LED Lighting – Low Power – Phase-cut dimming

  LED Lighting – Mid Power – Phase-cut dimming

  LED Lighting – High Power – Phase-cut dimming

  评估板FEBFL7734-L55H008A-GEVB

  The FEBFL7734-L55H008A-GEVB Evaluation Board is a highly integrated PWM controller with advanced Primary-Side-Regulation (PSR) technique to minimize components in low power LED lighting solutions. Using the innovative TRUECURRENT® technology for tight constant current control, it enables design with Constant Current (CC) tolerance of less than ±1% over universal line voltage range to meet stringent LED brightness requirements. FL7734 operates with all types of phase cut dimmers. Phase cut dimming is managed smoothly by Fairchild’s proprietary constant input current control, switching mode control and bleeding current control to achieve excellent dimmer compatibility without visible flicker. The controller can automatically detect when there is no dimmer connected. In non dimming mode, the operating mode is set to optimize Power Factor (PF) and Total Harmonic Discharge (THD) by enabling linear frequency control and voltage mode control with Discontinuous Conduction Mode (DCM) operation. An external bleeding MOSFET also acts as the high-voltage startup circuit to implement fast startup and high system efficiency. The FL7734 also provides powerful protections, such as LED open / short, sensing resistor shorted, and over-temperature for high system reliability.

  图2. 评估板FEBFL7734-L55H008A-GEVB外形图

  评估板FEBFL7734-L55H008A-GEVB主要特性:

  性能:

  《 ±2.6% Total Constant Current Tolerance Over All Conditions

  《 ±1.8% Over Universal Line Voltage Variation

  《± 1.1% from 70% to 100% Load Voltage Variation

  Excellent Dimmer Compatibility by Active Dimming Control

  Programmable Dimming Curve and Input Current Management

  Fast Startup utilizing Bleeding Circuit

  《 0.1 s at the Max. Dimmer Phase Angle

  《0.5 s at the Min. Dimmer Phase Angle

  Power Factor Correction in Non-dimming Mode

  Constant LED Current Regulation in Large Phase Angle Range

  系统保护:

  LED Short / Open Protection

  Output Diode Short Protection, Sensing Resistor Short / Open Protection

  VDD Over-Voltage Protection (OVP)

  VDD Under-Voltage Lockout (UVLO)

  Over-Temperature Protection (OTP)

  All Protections are Auto Restart (AR)

  Cycle-by-Cycle Current Limit

  特性

  Over-Temperature Protection (OTP)

  LED Short / Open Protection

  Constant LED Current Regulation in Large Phase Angle Range

  Cost-Effective Solution without Input Bulk Capacitor and Feedback Circuitry

  Programmable Dimming Curve and Input Current Management

  Excellent Dimmer Compatibility by Active Dimming Control

  All Protections are Auto Restart

FL7734

图3. 评估板FEBFL7734-L55H008A-GEVB威廉希尔官方网站 图

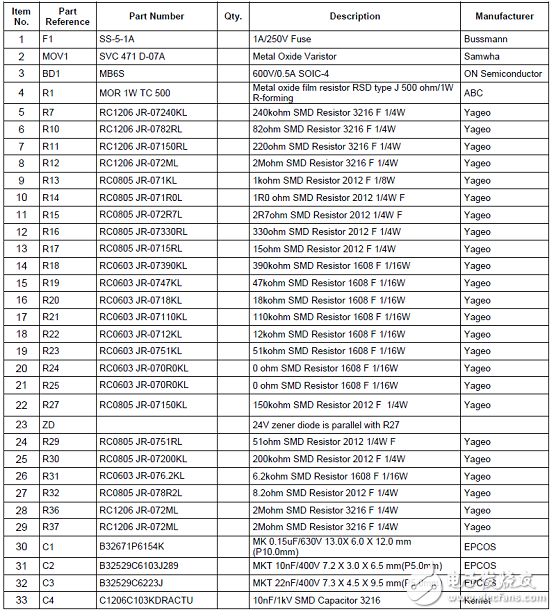

评估板FEBFL7734-L55H008A-GEVB材料清单:

FL7734

FL7734
