基于QN9080SIP的低功耗蓝牙5.0MCU的解决方案

电子工程师 2019-04-05 9468

电子说

1.3w人已加入

描述

nxp公司的QN9080-001-M17是支持BLE和NFC的超小型预先认证蓝牙5.0 MCU，集成了NFC NTAG®连接性。超小型器件是基于QN9080芯片和NT3H2211芯片。而QN9080芯片是基于Arm Cortex-M4F MCU，具有专用融合传感器协处理器（FSP），由于对硬件卸载了复杂数学算法而进一步降低功耗; NT3H2211芯片是具有I2C接口的NFC Forum Type 2 Tag兼容的IC，提供了最快最便宜方式以增加感应式（tap and go）连接性。 QN9080-001-M17还集成32MHz和32.768 kHz晶体，2.4GHz优化天线和运行QN9080系统所需要的必备的元件，集成了512KB闪存，128KB RAM，提供了需要BLE无线连接以及快速和NTAG配对的完整解决方案。它的外接元件数量少能降低系统尺寸，复杂性和缩短开发时间。发送功率高达+2dBm，接收灵敏度-92.7dBm（1Mbps模式）和-89dBm（2Mbps模式），主要用在健康和医疗设备，运动和健美跟踪器，建筑物和家庭自动化，零售和广告信标。本文介绍了QN9080SIP主要特性和优势，QN9080主要特性以NTAG主要特性与集成2.4GHz天线主要特性，以及QN9080-001-M17-高级HW框图，QN9080-001-M17评估板QN9080DK主要特性，威廉希尔官方网站图和PCB设计图。

The QN9080-001-M17 is a fully certified device supporting BLE and NFC. It has ultra-low power consumption， highly integrated with rich feature sets， fully FCC/CE/IC/MIC certified. The QN9080-001-M17 supports Bluetooth 5， and it is intended for ultra-small， portable connected wireless applications.

This ultra-small device is based on QN9080 die and NT3H2211 die. QN9080 is powered by an Arm Cortex-M4F， and has a dedicated fusion sensor co-processor （FSP） to further reduce power consumption by off-loading complex math computations to the hardware. 512 KB of on-board flash and 128 KB SRAM provide enough room and flexibility for complex applications. NT3H2211 is NFC Forum Type 2 Tag compliant IC with I2C interface， which supplies the fastest， least expensive way to add tap-and-go connectivity to just about any electronic applications.

The QN9080-001-M17 also integrates 32 MHz and 32.768 kHz crystals， a 2.4 GHz optimized antenna， and necessary components for QN9080 system to run. It offers a complete solution for applications requiring BLE wireless connectivity and fast pairing with NTAG as an option. Its low external component count reduces overall system size，complexity and shortens development time.

QN9080SIP主要特性和优势：

主要特性：

 Bluetooth 5.0 certified

 Integrated antenna

 Integrated 32 MHz and 32.768 kHz crystals

 32-bit Arm Cortex-M4F core at 32 MHz

 512 KB flash

 128 KB RAM

 TX power： up to +2 dBm

 RX sensitivity： -92.7 dBm in 1 Mbps mode and -89 dBm in 2 Mbps mode

 True single-chip Bluetooth Low Energy （v5.0） SoC solution：

 Integrated Bluetooth LE radio， protocol stack and application profiles

 Support central and peripherals roles

 Support master/slave concurrency

 Support 16 simultaneous links

 Support secure connections

 Support data packet length extension

 48-bit unique BD address

 -92.7 dBm in 1 Mbps mode and -89 dBm in 2 Mbps mode

 TX output power from -20 dBm to +2 dBm

 Very low power consumption：

 Single 1.67 V ~3.6 V power supply

 1 A power-down mode， to wake up by GPIO

 2 A power-down mode， to wake up by 32 kHz sleep timer， RTC and GPIO

 4 mA RX current at 3 V supply in 1 Mbps

 Ultra Low power Bluetooth Low Energy 5.0 module

 3.5 mA TX current at 0 dBm TX power at 3 V supply in 1 Mbps mode

 Interface：

 32 General-Purpose Input/Output （GPIO） pins， with configurable pull-up/pull-down

resistors

 8 external ADC inputs （shared with GPIO pins）

 2 Analog Comparator input pins （share with GPIO pins）

 Single power supply 1.67 V to 3.6 V

 Operating temperature range -40℃ to +85℃

 6 x9.7x1.17 mm LFLGA package

QN9080主要特性：

 True single-chip Bluetooth Low Energy （v5.0） SoC solution

 Integrated Bluetooth LE radio， protocol stack and application profiles

 Supports central and peripherals roles

 Supports master/slave concurrency

 Supports 16 simultaneous links

 Supports secure connections

 Supports data packet length extension

 Wifi/Bluetooth LE coexistence interface

 48-bit unique bluetooth device address

 RF

 Fast and reliable RSSI in 1 dB step

 TX output power from 20 dBm to 2 dBm

 Single-ended RF port with integrated balun

 Generic FSK modulation with programmed data rate from 250 Kbps to 2 Mbps

 Compatible with worldwide radio frequency regulations

 Very low power consumption

 Single 1.67 V to 3.6 V power supply

 Integrated DC-to-DC buck converter and LDO

 1.0 A power-down 1 mode， to wake up by GPIO

 2.5 A power-down 0 mode， to wake up by 32 kHz sleep timer， RTC and GPIO

 3.5 mA RX current with DC-to-DC convertor enabled at 3 V supply in 1Mbps mode

 4 mA TX current at 0 dBm TX power with DC-to-DC converter enabled at 3 Vsupply in 1 Mbps mode

 Arm Cortex-M4 core （version r0p1）

 Arm Cortex-M4 processor， running at a frequency of up to 32 MHz

 Floating Point Unit （FPU） and Memory Protection Unit （MPU）

 Arm Cortex-M4 built-in Nested Vectored Interrupt Controller （NVIC）

 Serial Wire Debug （SWD） with six instruction breakpoints， two literal comparators，and four watch points， including serial wire output for enhanced debug capabilities

 System tick timer

 On-chip memory

 512 KB on-chip flash program memory and 2 KB page erase and write

 128 KB SRAM

 256 KB ROM

 ROM API support

 Flash In-System Programming （ISP）

 Serial interfaces

 Four Flexcomm serial peripherals

 USART protocol supported by Flexcomm0， USART and I2C by Flexcomm1， SPIand I2C by Flexcomm2， and SPI by Flexcomm3

 Each Flexcomm includes a FIFO

 I2C-bus interfaces support fast mode and with multiple address recognition andmonitor mode

 USB 2.0 （full speed） device interface

 Two quadrature decoders

 SPI Flash Interface （SPIFI） uses a SPI bus superset with four data lines to access

off-chip quad SPI flash memory at a much higher rate than is possible usingstandard SPI or SSP interfaces

 Supports SPI memories with 1 or 4 data lines

 Digital peripherals

 DMA controller with 20 channels， able to access memories and DMA capable

peripherals

 Up to 35 General Purpose Input Output （GPIO） pins， with configurable pull-up or

pull-down resistors

 GPIO registers are located on the AHB for fast access

 32 GPIOs can be selected as Pin INTerrupts （PINT）， triggered by rising， or falling

input edges

 AES-128 security coprocessor

 Random Number Generator （RNG）

 CRC engine

 Fusion Signal Processor （FSP） for data fusion and machine learning algorithms

resulting in low power consumption compared to software processing

 Analog peripherals

 16-bit ADC with 8 external input channels， with sample rates of up to 32k sample

per second， and with multiple internal and external trigger inputs

 Integrated temperature sensor， connected to one internal dedicated ADC channel

 Integrated battery monitor connected to one internal dedicated ADC channel

 General-purpose 8-bit 1M sample per second DAC

 Integrated capacitive sense up to 8 channels， able to wake up the MCU from low

power states.

 Twoultra low-power analog comparators， able to wake up the MCU from low power

states.

 Timers

 Four 32-bit general-purpose timers or counters， support capture inputs and

compare outputs， PWM mode， and external count input

 Sleep timer， which can work in power-down mode and wake up MCU

 32-bit Real Time Clock （RTC） with 1 second resolution running in the always-on

power domain; can be used for wake-up from all low power modes includingpower-down

 Watchdog Timer.

 SC Timer or PWM.

 Clock generation

 32 MHz internal RC oscillator， which can be used as a system clock

 16 MHz or 32 MHz crystal oscillator， which can be used as a system and RFreference

 32 kHz on-chip RC oscillator

 32.768 kHz crystal oscillator

 Power control

 Programmable Power Management Unit （PMU） to minimize power consumption

 Reduced power modes： sleep， and power-down

 Power-On Reset （POR）

 Brown-Out Detection （BOD） with separate thresholds for interrupt and forced reset

 Single power supply 1.67 V to 3.6 V

 Operating temperature range 40 ℃ to +85 ℃

NTAG主要特性：

 Interoperability

 ISO/IEC 14443 Part 2 and 3 compliant

 NTAG I2C plus development board is certified as NFC Forum Type 2 Tag

（Certification ID： 58514）

 Unique 7-byte UID

 GET_VERSION command for easy identification of chip type and supportedfeatures

 Input capacitance of 50 pF

 Host interface

 I2C slave

 Configurable event detection pin to signal NFC or pass-through data events

 Memory

 1912 bytes of EEPROM-based user memory

 64 bytes SRAM buffer for transfer of data between NFC and I2C interfaces withmemory mirror or pass-through mode

 Clear arbitration between NFC and I2C memory access

 Data transfer

 Pass-through mode with 64-byte SRAM buffer

 FAST_WRITE and FAST_READ NFC commands for higher data throughput

 Security and memory-access management

 Full， read-only， or no memory access from NFC interface， based on 32-bit

password

 Full， read-only， or no memory access from I2C interface

 NFC silence feature to disable the NFC interface

 Originality signature based on Elliptic Curve Cryptography （ECC） for simple，

genuine authentication

 Power Management

 Configurable field-detection output signal for data-transfer synchronization and

device wake-up

 Energy harvesting from NFC field， so as to power external devices （e.g. connected

microcontroller）

集成2.4GHz天线主要特性：

 Monolithic SMD with small， low-profile and light-weight type.

 Wide bandwidth

 RoHS compliant

QN9080SIP应用：

 Health and medical devices

 Sports and fitness trackers

 Building and home automation

 Retail and advertising beacons

mcu

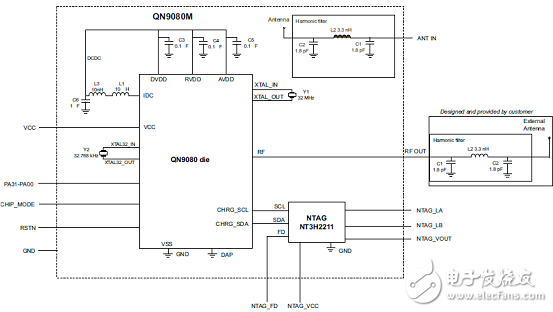

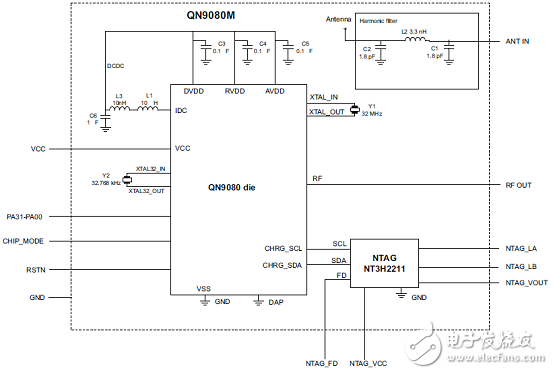

图1.QN9080-001-M17-高级HW框图

mcu

图2.采用外接天线的QN9080-001-M17框图

QN9080-001-M17目标应用：

Consumer Electronics

Consumers and wearables

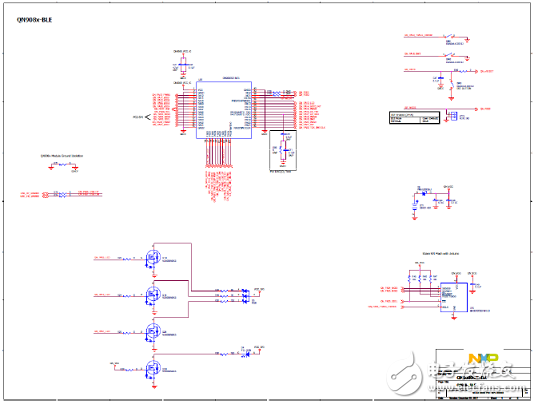

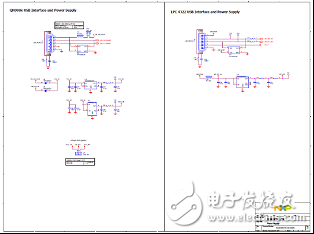

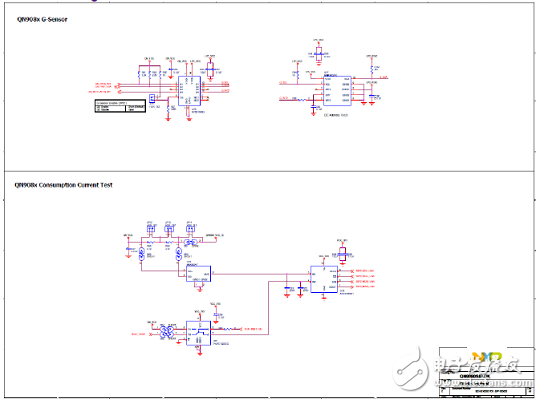

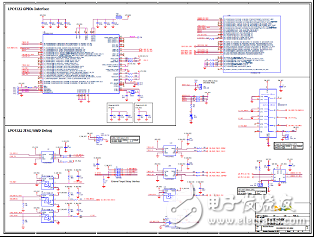

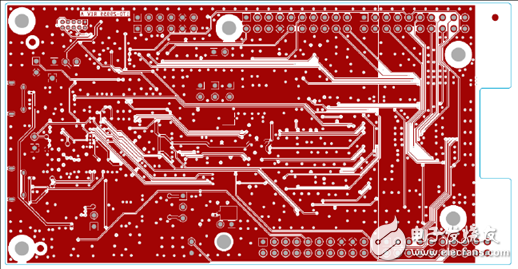

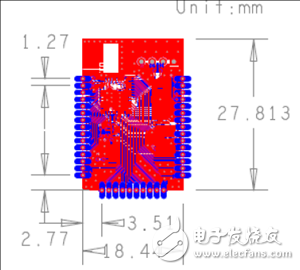

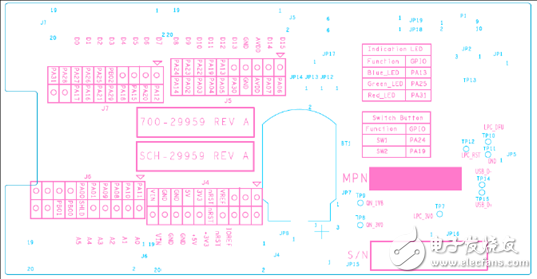

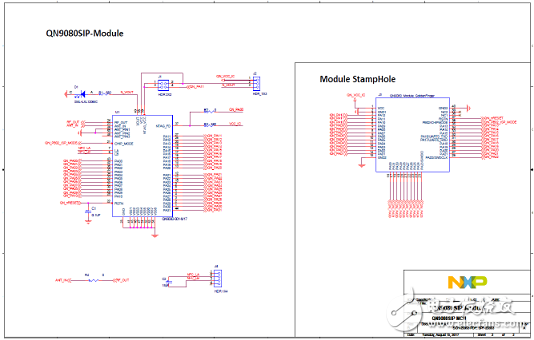

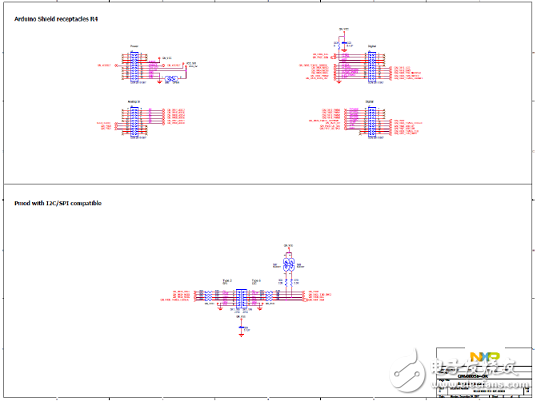

QN9080-001-M17评估板QN9080DK

The QN9080DK board is designed to make it as easy as possible to get started with your project based on NXP® QN908x BLE SOC. The QN9080DK board integrates buttons， Piezo buzzer， LED for easy way to reset chip and indicate chip status. The DK board also provides useful interfaces such as USB port for UART communication and CMSIS-DAP debug.

The QN9080-001-M17 DK board is designed to ease the evaluation of the chip ’ s functions and performance on customer side to make it easy to control， connect， and debug the extension hardware and make it easy for the customer to develop and debug firmware.

The QN9080-001-M17 DK board provides easy access to peripherals， such as buttons and LEDs. The board also provides useful interfaces， such as the USB port for UART communication， the CMSIS-DAP debugger， and the standard Arduino and Pmod connector. The USB dongle is a Bluetooth® device powered by QN9080. It acts as a master/slave when communicating with QN9080-001-M17 devices.

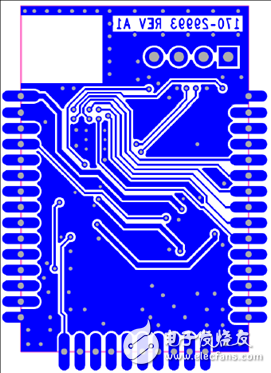

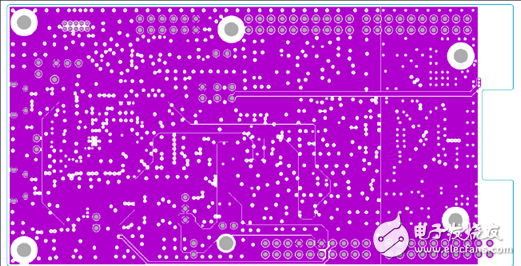

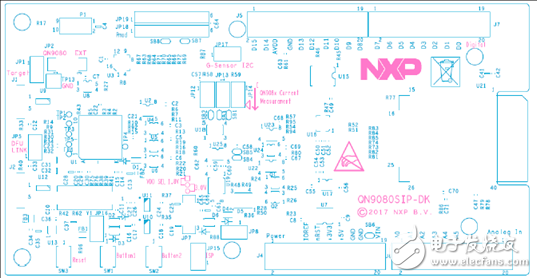

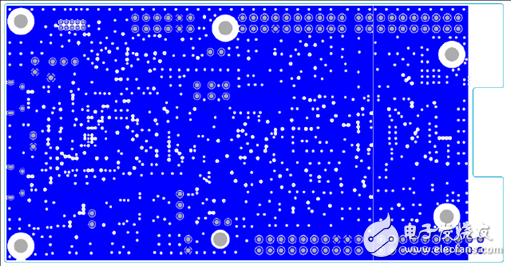

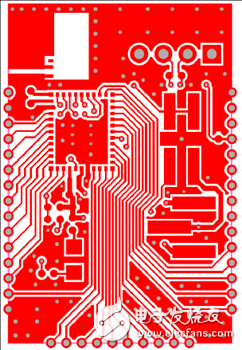

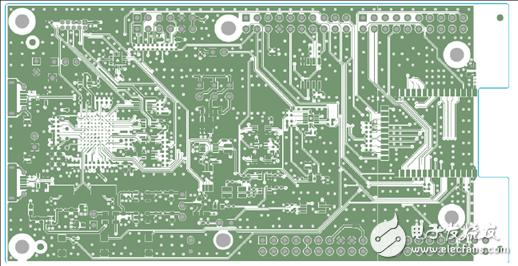

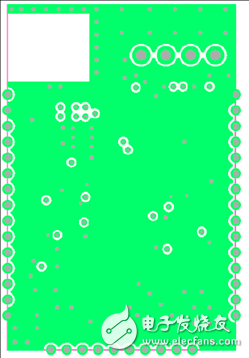

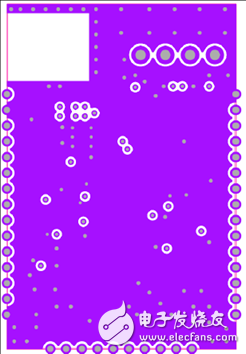

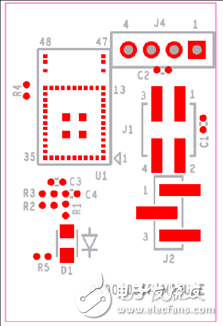

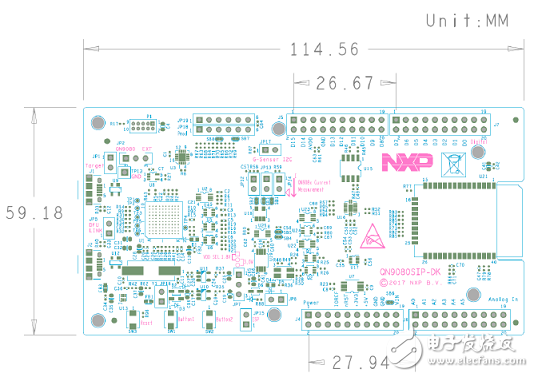

图3.评估板QN9080DK外形图

mcu
