Maxim MAX98306立体声3.7W D类放大器解决方案~*

关键词： D类放大器 , MAX98306 , Maxim , 立体声

Maxim公司的MAX98306是立体声3.7W D类放大器,具有AB类的音频性能和D类的效率.器件提供5种可供选择的增益设定(6dB, 9dB, 12dB, 15dB和18dB),工作电压5V,3.7V时的静态电流为2.0mA, 217Hz时的PSSR为83dB,具有热和过流保护,主要用在智能手机,平板电脑,MP3,手持音乐播放器和VoIP电话.本文介绍了MAX98306主要特性,方框图,典型应用威廉希尔官方网站 图以及MAX98306评估板主要特性,威廉希尔官方网站 图和材料清单,PCB元件布局图.

The MAX98306 stereo 3.7W Class D amplifier provides Class AB audio performance with Class D efficiency. This device offers five selectable gain settings (6dB, 9dB, 12dB, 15dB, and 18dB) set by a single gain-select input (GAIN).

Active emissions limiting, edge-rate, and overshoot control circuitry combined with a filterless spread-spectrum modulation scheme (SSM) provide excellent EMI performance while eliminating the need for output filtering found in traditional Class D devices. These features reduce application component count.

The IC’s 2.0mA quiescent current with a 3.7V supply extends battery life in portable applications.

The IC is available in a 14-pin TDFN (3mm x 3mm x 0.75mm) package specified over the extended -40NC to +85NC temperature range.

MAX98306主要特性:

Output Power 3.7W at 3I, 10% THD, 1.7W at 8I, 10% THD, with 5V Supply

Passes EMI Limit Unfiltered with Up to 12in of Speaker Cable

High 83dB PSRR at 217Hz

Spread-Spectrum Modulation and Active Emissions Limiting

Five Pin-Selectable Gains

Excellent Click-and-Pop Suppression

Thermal and Overcurrent Protection

Low-Current Shutdown Mode

Space-Saving, 3mm x 3mm x 0.75mm, 14-Pin TDFN

MAX98306应用:

Smartphones

Tablets

Cellular Phones

Accessory Speakers

MP3 Players

Portable Audio Players

VoIP Phones

2011-9-8 14:53:05 上传

下载附件 (33.26 KB)

图1. MAX98306方块图

2011-9-8 14:53:05 上传

下载附件 (14.27 KB)

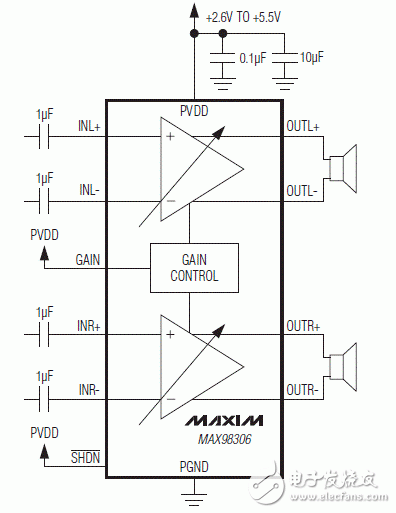

图2. MAX98306典型应用威廉希尔官方网站 图

MAX98306评估板

The MAX98306 evaluation kit (EV kit) is a fully assembled and tested PCB that evaluates the MAX98306 stereo 3.2W Class D amplifier. The EV kit operates from a single 2.6V to 5.5V DC power supply and is capable of delivering 3.2W into a 4I load. The EV kit accepts a differential or single-ended audio input and provides differential outputs for the speaker. The device outputs can be connected directly to a speaker load for filterless applica-tions. However, a filter can be added to ease evaluation.

MAX98306评估板主要特性:

2.6V to 5.5V Single-Supply Operation

Single-Ended or Differential Audio Input

Five Selectable Gains

Filterless Operation

Optional Class D Output Filters for Ease of Evaluation

Low-Power Shutdown Mode

Proven PCB Layout

Fully Assembled and Tested

2011-9-8 14:53:05 上传

下载附件 (24.98 KB)

图3.MAX98306评估板威廉希尔官方网站 图
MAX98306评估板材料清单:

2011-9-8 14:53:05 上传

下载附件 (46.83 KB)

2011-9-8 14:53:05 上传

下载附件 (59.48 KB)

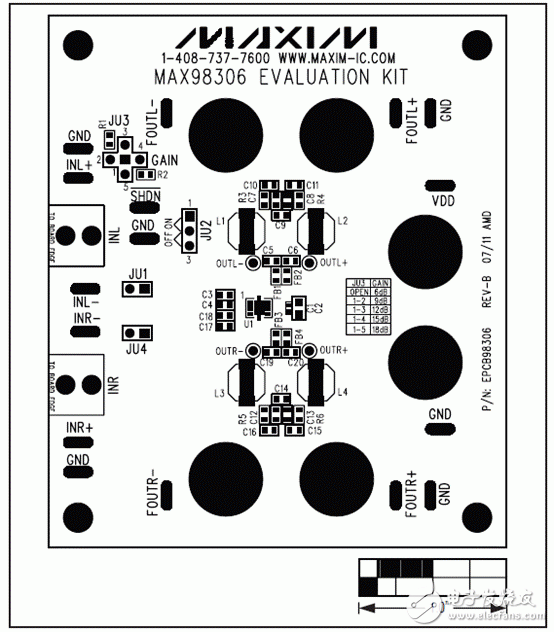

图4.MAX98306评估板元件布局图
